JL Audio Subwoofer Box Design

Last updated

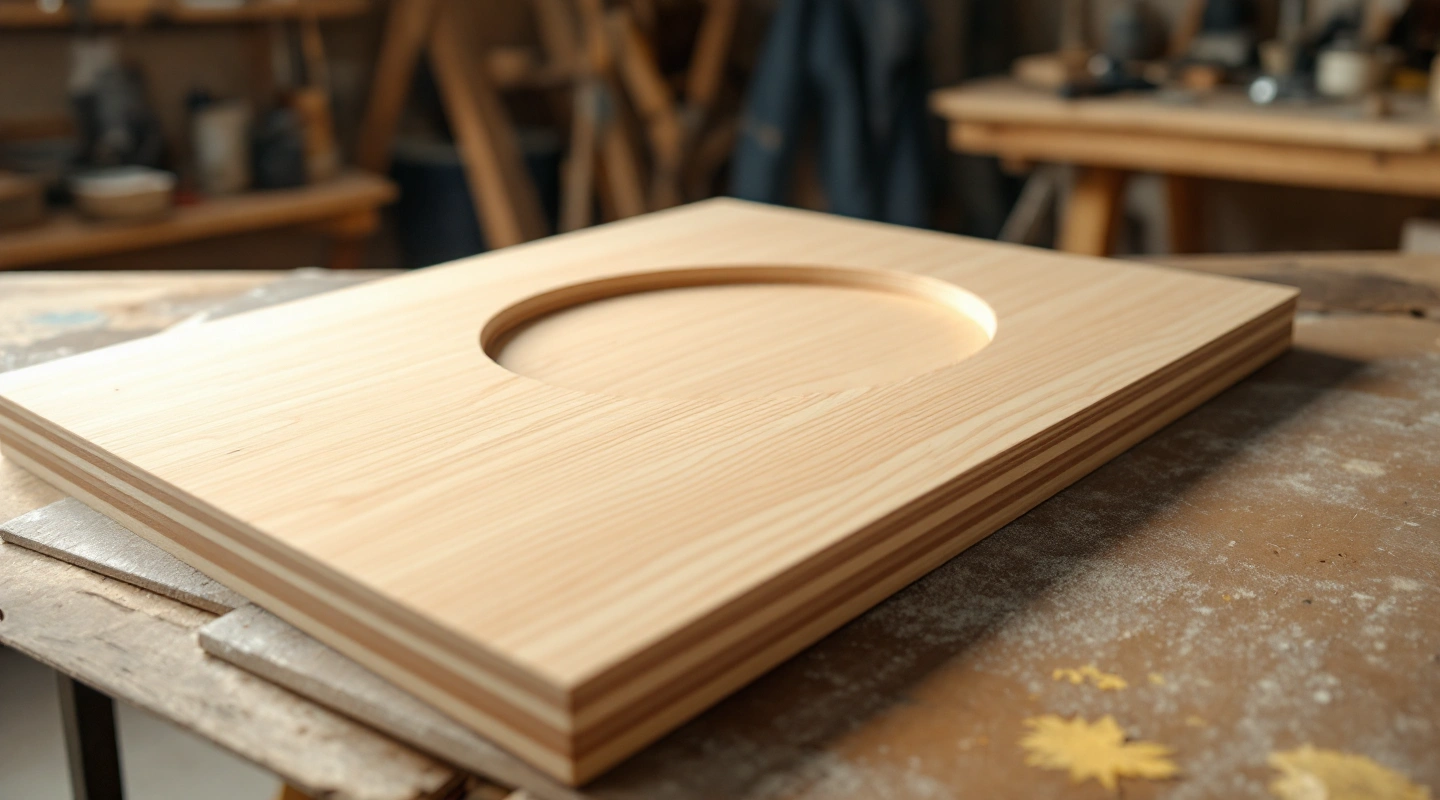

Loose plywood panel with a circular opening on a workshop bench

This JL Audio subwoofer box design guide uses the exact 12W0v3-4 owner manual. It checks the difference between a net box target and outside sizes, then builds a fresh calculation from stated inputs. It does not extend the example to W3, W6, W7 or another revision.

The 12W0v3-4 manual labels its targets as net internal airspace. Add the installed parts when sizing a new empty cavity. Keep published figures separate from this site's calculations. Two source differences remain visible below: driver displacement alone does not reconcile the listed exterior dimensions with the net target, and ideal Qtc differs from the printed Qtc.

On this page

Find the JL box design manual and model

The source is the 12W0v3-4 manual hosted by Garmin, document JLA12W0v3_MAN_09_13. The parameter and physical specification table is on printed page 2; box designs are on page 3. Check your driver's label against that document before using any value.

This is a document-based worked reference. It does not claim that the driver is currently sold in the US, or that a retailer's similarly named listing is the same revision. An owned driver can still be checked against its proper source document.

Keep the source URL and revision in the saved plan. If a newer maker's notice changes a field, update that field and keep a correction record. Do not silently merge sizes from one model with acoustic parameters from another.

Read the net targets

The manual gives 1.375 cubic feet net for its sealed box and 1.750 cubic feet net for the ported design. The ported row pairs that target with a 3-inch inside-diameter port of 14-inch length and a published 26 Hz tuning figure.

Net airspace excludes installed parts. The manual lists physical driver displacement as 0.048 cubic feet. A new cavity calculation also needs the actual brace, terminal and vent deductions. The published exterior dimensions already describe the manufacturer's example. Do not add driver displacement to those dimensions again.

For fit, page 2 lists a mounting hole of 11.0625 inches, frame diameter 12.52 inches and mounting depth 5.4 inches. Those are source facts for this exact model. Rear clearance and your cutout location still need checking in the actual layout.

Build a fresh rectangular box design ledger

Choose the sealed 1.375-cubic-foot net target. For a fresh shell example, fix outside width at 16 inches and height at 19 inches. Use 0.75-inch walls with one front layer. Assume brace and terminal volumes of 0.040 and 0.003 cubic feet. Those two deductions illustrate the method; they are not measurements of a real build.

Required gross cavity becomes 1.375 + 0.048 + 0.040 + 0.003, or 1.466 cubic feet. Inside width is 14.5 inches and height 17.5 inches. Required outside depth is 11.483243 inches. The assumed brace and terminal entries are example inputs, not JL specs.

Substitute that depth back into the cavity formula. The result returns 1.466 cubic feet gross and 1.375 net after the stated deductions. That closes the arithmetic loop. It does not prove that the proposed brace layout or driver center fits.

Use the box planner to enter your actual intrusions and cutout coordinates. Keep the construction checklist beside the finished panel list.

Keep published and computed results separate

The manual's sealed outside sizes are 16 × 19 × 11.75 inches in 0.75-inch material. The simple rectangular cavity is 1.505172 cubic feet. After subtracting only the listed 0.048 driver displacement, it is 1.457172. This exceeds the stated 1.375 net target by 0.082172 cubic feet.

That residual is not explained by the driver alone. Do not invent a brace volume to force agreement. Keep the published sizes as a stated example and the fresh ledger above as a separate derived plan with stated deductions.

The manual also lists Fs 28.43 Hz, Qts 0.670 and Vas 2.530 cubic feet. At 1.375 cubic feet net, the ideal sealed relation gives Fc 47.9111 Hz and Qtc 1.1291. The manual prints Fc 47.91 and Qtc 1.179. Fc agrees at rounding; Qtc does not.

The sealed calculator keeps its ideal result separate from published figures. The public closed-box equation note supplies the ideal relation. No measurement or source correction is claimed from this mismatch alone.

Check mounting and port layout

Plot the frame circle as well as the cutout. Use the actual mounting plane when checking rear depth. Include the motor, terminals and cable, then inspect any brace behind the driver. A cavity result cannot prove that those envelopes do not intersect.

For a ported design, use the stated vent as a complete starting example. A rough round-port equation with declared end effects may differ slightly from a maker's tuning label. Do not alter the manual's length simply to force an exact numerical match in a generic equation.

The port calculator labels physical and effective lengths separately. Check the vent's occupied inside length, outside diameter and end clearance before adding it to a new shell plan.

Keep the source units together

The manual prints inch and metric sizes together. Those printed pairs are rounded source values. For example, it pairs the 16-inch sealed width with 406 millimeters. An exact conversion of 16 inches is 406.4 millimeters. Both labels describe the source example, but they are not equal to the last decimal place.

Choose one source unit set before doing a fresh calculation. If you start with inches, convert that complete set when switching the planner to metric. Do not take width from one rounded column, height from another and wall thickness from a third source. That creates a new set of inputs without showing where the changes came from.

The same issue applies to the board. The manual's paired 0.75-inch and 19-millimeter labels describe nominal material. Exactly 0.75 inch is 19.05 millimeters. Measure the sheet you will cut and enter that value. The new panel dimensions then belong to your measured material, rather than being an exact copy of the printed example.

Keep the original document numbers in the source record. Keep converted or measured values in the calculation record. This makes a small rounding difference easy to trace. It also prevents that small difference being used as an unsupported explanation for the larger unresolved net-volume gap above.

Work through a two-driver divided-shell example

The manual says to double the required volume for two drivers in a common enclosure. Its ported instruction also doubles the recommended ports. A divided sealed shell needs one further step: each chamber must have its own target airspace, and the divider occupies material inside the outer shell.

Here is a fresh layout exercise using two copies of the documented sealed net target. It is not a JL panel plan. Choose outside width 32 inches and height 18 inches, with 0.75-inch walls and one front layer. Put a 0.75-inch vertical divider between two equal chambers. Assume 0.040 cubic feet of braces and 0.003 of terminal hardware in each chamber.

The two net targets total 2.750 cubic feet. The two drivers occupy 0.096 cubic feet. Assumed braces total 0.080, and terminal hardware totals 0.006. Before the divider is added, those terms require 2.932 cubic feet. The divider volume is not yet a fixed number because its depth will follow the solved inside depth.

Inside shell width is 30.5 inches. Removing the divider thickness leaves 29.75 inches shared between the chambers. Inside height is 16.5 inches. Solve depth with 2.932 × 1728 / (29.75 × 16.5). The result is 10.321357 inches inside, or 11.821357 inches outside after the front and rear walls are added.

Now check the divider from that depth. Its occupied volume is 0.75 × 16.5 × 10.321356760886173 / 1728, about 0.073916 cubic feet. The full empty shell cavity is about 3.005916 cubic feet. Subtract the divider, both drivers and the assumed hardware to return 2.750 net. Calculations use the unrounded depth.

Each chamber is 14.875 inches wide inside. Its gross cavity is 1.466 cubic feet. Removing one 0.048 driver, 0.040 of assumed bracing and 0.003 of terminal hardware returns the intended 1.375 net. Checking each side catches an error that a total-volume figure alone could hide.

Draw the openings before treating that shell as buildable

For the divided example, place the driver centers at X 8.1875 and 23.8125 inches from the outside left edge. Set both Y coordinates to 9 inches from the bottom. Those positions center the drivers in their equal chambers. Plot the manual's 12.52-inch frame and 11.0625-inch cutout at each location.

The frame and cutout circles fit the front panel under those inputs. That is only a front-view check. The buried basket still needs its own envelope. The listed magnet diameter does not describe every part of the basket. Brace openings must clear those parts, and both terminal projections need positions in the same drawing.

At the solved depth, the rear inside plane lies about 5.671357 inches behind the listed 5.4-inch mounting depth. That is available distance under this synthetic shell geometry. It is not a manufacturer-specified rear-clearance requirement. Keep the requirement unknown until the exact installation information establishes it.

The example brace and terminal volumes do not establish where those parts sit. Enter disjoint solid coordinates if using the planner's conservative fit checks. A correct volume sum with missing positions stays a provisional shell worksheet. Check installation and removal access separately, including clearance from the vent and wiring.

Explore volume sensitivity without changing the source target

You can compare nearby net volumes in the ideal sealed model while keeping the published target intact. With the manual's Fs, Qts and Vas, 1.250 cubic feet gives ideal Qtc about 1.1651 and Fc 49.4388 Hz. At 1.500 cubic feet, the same equations give Qtc about 1.0982 and Fc 46.5998 Hz.

Those two volumes are calculation probes. They are not extra JL recommendations. They show the direction and size of the ideal model's change around the documented 1.375-cubic-foot point. They do not show the vehicle response or establish a preferred sound. No fill or leakage adjustment has been added.

Keep physical displacement out of Vas. Vas describes air compliance in the small-signal model. The separate 0.048-cubic-foot physical driver displacement belongs in the construction ledger. Adding it to Vas would change the acoustic input for the wrong reason. Subtracting Vas from the shell would remove a volume that the driver does not physically occupy.

An inverse check can also help describe the Qtc mismatch. Using Qts 0.670 and Vas 2.530 with the printed Qtc 1.179 gives ideal net volume about 1.206745 cubic feet. That differs from the printed 1.375 target. The result shows that the supplied values do not close under this ideal equation. It does not identify which source assumption accounts for the difference.

Save a comparison another builder can repeat

Record the exact manual filename and document code first. Put the source's sealed or ported row beside the values you entered. Label any measured thickness, assumed hardware volume or chosen cutout center as your input. A revised depth is then traceable to the entries that produced it.

For the two-chamber exercise, save the divider as a separate occupied part. Keep each chamber's ledger as well as the combined total. If one terminal or brace later moves between chambers, update the affected side. Equal outside halves do not prove equal net airspace when their installed parts differ.

Keep the original file when you revise a plan. Compare the target convention first, then the material thickness and each deduction. This avoids treating a changed input as a calculator error. If the same inputs produce a different result after a formula update, keep both versions and use the correction worksheet to prepare a report.

FAQ

Are JL Audio box volumes always net?

This guide makes that statement only for the exact manual read here. Do not infer a rule for every JL product or document revision. Read the volume definition beside your own model's design. Keep the source and original units with each copied number, along with a note of which deductions it includes.

Why not use the manual sizes as an exact arithmetic check?

The known wall and driver figures leave a gap against the printed net target. This guide does not supply the missing explanation. Keep the source example and fresh ledger separate. Inventing an internal brace to make the figures agree would turn an unknown construction detail into a false fact.

Which Qtc figure should I label as computed?

Using the stated Fs, Qts and Vas with the ideal relation gives about 1.1291 at the sealed target. Label that as calculated. Keep the manual's 1.179 on a separate line labeled published. Neither is a measured result from this site, because no such test took place.

Can the same shell hold two drivers?

That needs a new volume and fit calculation. Read the manual's common-chamber instructions. Count each driver's occupied space and lay out both frames and motors. A second cutout does not supply twice the airspace. In a divided box, calculate each chamber separately and account for the divider material once.

Verdict

For a JL Audio subwoofer box design, keep the manual's exact net convention and model identity. Use a fresh ledger when you need repeatable sizes, and keep the unresolved published differences.
