How to Build a Ported Subwoofer Box

Last updated

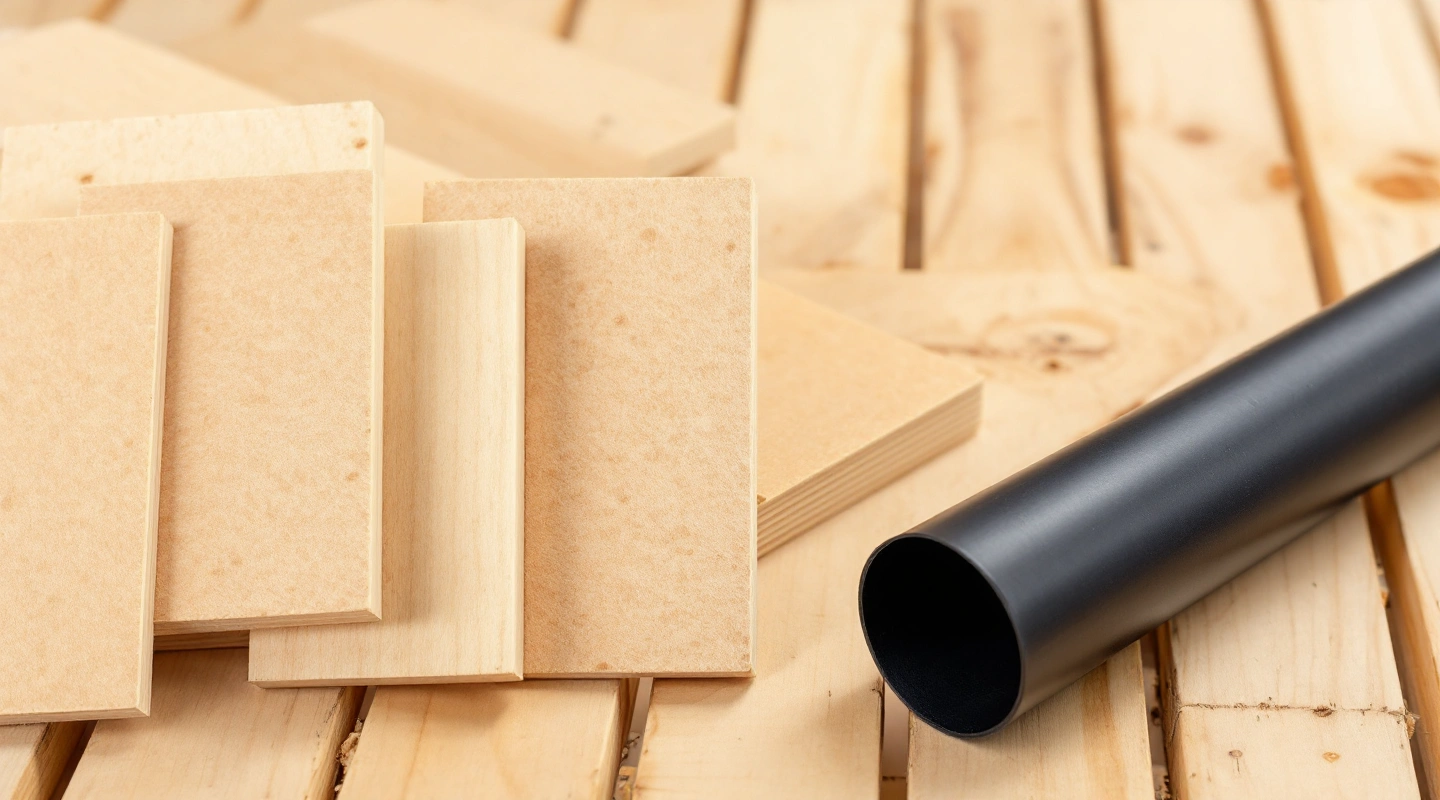

Loose plywood offcuts beside a short unmarked black tube

To plan how to build a ported subwoofer box, design the cavity and vent together. Use a published alignment for the exact driver. The shell must retain the required airspace after all parts are installed. A correct cubic-foot label does not prove that the vent fits or that its openings are clear.

Start with the maker's vented target and its volume convention. Define clear port area, physical length and end treatment before solving the shell. Add the space occupied by the duct. Draw the motor and braces, then check the figures again. Dry-fit the complete duct before bonding. Print a final panel plan only after the target and physical route agree.

On this page

1. Choose the ported subwoofer box alignment

Copy the full driver identifier, manual revision and source URL into your plan. Read the volume definition beside the vented design. A true-net target excludes occupied parts. A target that includes the driver requires you to keep that volume in the total. Do not infer the convention from brand alone.

The size chart keeps a few stated examples. Use your own manual when the exact model is absent. A nominal diameter or a generic Qts threshold cannot supply a complete vented design.

Read the linked operating and filtering guidance. KICKER's construction guide explains the reduced control below tuning in a vented system. A design equation does not prove safe power or protect a driver from an unsuitable input signal.

2. Define clear area and physical length

For a round tube, clear area uses the inside diameter. A slot uses its open width times its open height. Keep the total area and number of identical ports stated. Multiple vents also need physical room and clearance; they are not just a multiplier in a form.

Physical length follows the duct path. Effective length includes the acoustic end corrections. The UNSW Helmholtz relation explains that distinction. A round tube's correction cannot be assumed to apply to a slot or any flared or folded duct.

Use stated vent sizes where the maker gives a full example. For a new rough design, the port calculator states its round-end assumptions and asks for a correction for other layout. Keep that assumption on the printed plan.

3. Work out the whole inside volume

Clear area and occupied space serve different purposes. A tube's inside diameter sets its acoustic area. Its outside cross section times the length inside the cavity gives the excluded volume. Keep the wall passage and any outside protrusion out of that inside length.

For a slot, add its duct air and actual inside partition material. Remove shared shell walls and partition intersections from the material count. Do not add a full outer rectangular duct around a slot that uses the cabinet's own top or side wall.

The CompR worked guide checks the manual's isolated-duct example. Its duct occupies about 0.648148 cubic feet in that layout. That figure is not a fixed allowance for a 12-inch driver or every 20-inch vent.

4. Solve the shell and recheck the route

Choose outside width and height from the measured space and driver layout. Add the occupied deductions to a true-net target, then solve inside depth from the required gross cavity. Add the actual front and rear thickness to get outside depth.

For a synthetic example, choose 1.50 cubic feet true net. Let the driver and other fixed parts occupy 0.10 cubic feet in total. Allow another 0.20 for the vent. Required gross cavity is 1.80 cubic feet. With outside width 24 inches, height 16 and 0.75-inch walls, outside depth is about 11.033793 inches.

The 0.20 vent figure is an example input, not a recommended port. A vent long enough for the chosen tuning may not fit inside that depth. Draw the real path and check the inlet clearance. A positive shell depth is not a completed box design.

If a computed vent uses more space than the assumed one, update the ledger and solve again. For true-net target mode, work out the vent from that target before solving the shell. Gross-target mode couples the net airspace and vent length; the solver must reject impossible or ambiguous solutions.

Check the complete three-view layout

Draw front, top and side views from the same sizes. Show driver frame, cutout and motor envelope. Add every vent wall, the terminal cup and brace material. The front openings can fit while the inside parts collide behind them.

Record the port's inside length, wall passage and outside protrusion. For a straight tube through the front, their sum must equal physical length. Counting the whole tube as inside the cavity would overstate its occupied volume when part of it passes through the baffle.

Keep vent opening clearances tied to the actual source. A generic clearance rule is not proof for every flared assembly. The planner marks fit unknown when those sizes are missing. A complete output should keep that unknown rather than using a green label by default.

5. Dry-fit and bond the duct

Cut the shell from the checked plan, accounting for the selected joints. The rectangular assembly guide explains this site's butt-joint layout. Change the panel sizes if you use a different joint arrangement.

Dry-fit the duct and inside parts before bonding. Measure the clear opening after placing partitions. Check the driver can be installed and removed. Keep adhesive squeeze-out and cable loops outside the air path. Access matters: an inaccessible seam is difficult to inspect after the last panel closes.

Use adhesives and sealants stated for the actual materials. Follow the maker's assembly and cure conditions. Do not swap a thicker bead for a poorly fitted joint. OSHA's table-saw guidance and the selected tool manual provide the cutting controls relevant to the work.

6. Verify the finished ported subwoofer box

Measure the final cavity and vent after assembly. Calculate true net volume again from the installed parts. Compare the final physical length and open section with the saved plan. Record any build deviation.

Inspect each mounting seal for unwanted leaks. Include the driver gasket and both the terminal and vent flanges. Keep the intended duct open. The ported sealing guide separates those tasks. Check that carpet or a finish layer has not reduced the clear opening.

For a measured tuning check, use stated low-level measurement equipment and its procedure. An impedance sweep can help find the vented alignment's features, but this site does not report a measurement you have not made. A calculator result remains an estimate from the entered layout.

Keep the model source, convention, panel plan and occupied-space ledger together. Include the sound-speed and end-correction assumptions. A tuning figure such as 32 Hz needs those inputs so someone else can repeat the calculation. Label published tuning and computed tuning on separate lines.

Print hides shopping content so the worksheet stays focused on construction. Save local JSON before changing a vent or brace. The saved precision makes a fresh check possible, while the printed rounded sizes still need to be checked against your tools and measured material.

FAQ

Can I choose any ported volume that fits the car?

Use a stated alignment for the exact driver. Physical space is one constraint, but it does not prove acoustic fit. Choose the vent's clear area and length together, then check its route. This tool does not generate a complete vented recipe from nominal diameter or a few free-air parameters alone.

Should I subtract the air inside the port?

Yes, the inside duct envelope is excluded from the box compliance airspace used in this model. For a tube, use the outside cross section over its length inside the cavity. For a slot, count duct air and inside partition material once. Avoid subtracting cabinet-shell material again.

Can I fold a port that is too long?

A fold needs a new geometric and acoustic check. Define the route and section, with an end treatment suited to the design. Do not assume the same straight-tube correction applies to every folded slot. Keep any entered rough model visible. A drawing that fits on paper still needs those assumptions checked.

Does the computed tuning prove safe power?

No. The equation estimates a small-signal resonance from net airspace and effective vent length. It does not work out excursion, port velocity or the driver's thermal limits. Follow the maker alignment and operating instructions. A low tuning number alone is not a safe-power rating or a noise-free claim.

Verdict

Knowing how to build a ported subwoofer box means reconciling the target, occupied vent and actual route before cutting. Use the box planner for the shell and keep its assumptions with the result.
